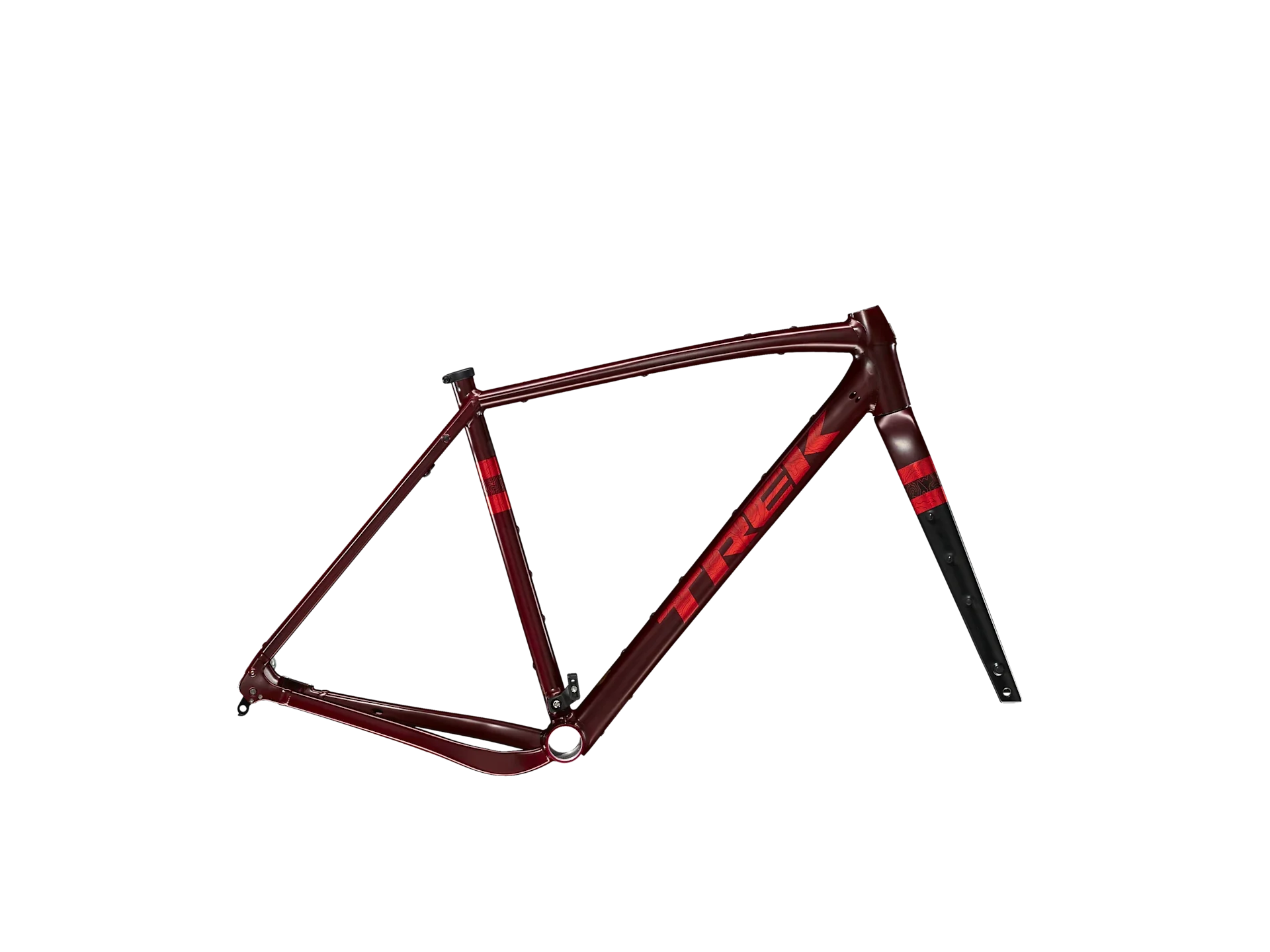

Trek Checkpoint ALR Frame Set

Trek Checkpoint ALR Frame Set

Featured
£1,100.00 GBP
296 products Close Filters Most relevant Best selling
Price, high to low
Date, new to old

Sort



*Please note – spec applies to all sizes unless listed separately


Frameset
Frame    300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axleAvailability
Fork    Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit    Gravel

Weight
Weight    1490g - 56cm (frame-only, painted)
580g (fork-only, painted)In stock
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Out of stock

Drivetrain
Max. chainring size    1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

Wheels
Skewer front    Bontrager Switch thru axle, removable leverPrice
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    See service manual

Components
Rotor size    Max brake rotor sizes: 160mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
